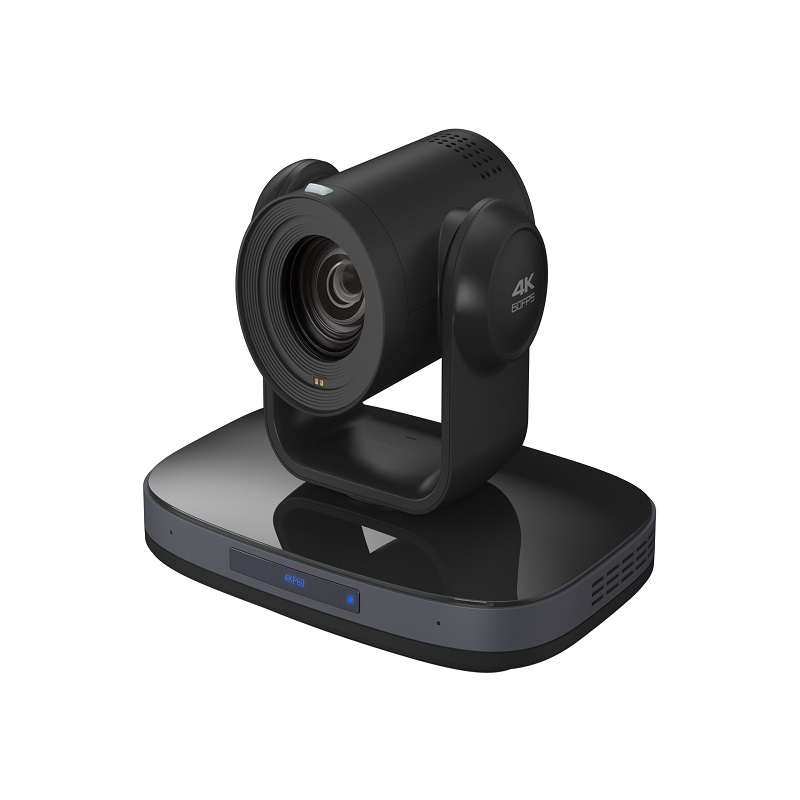

With the help of the AI computing power of the chip, the camera is equipped with advanced AI algorithms to realize monocular humanoid tracking, which can realize automatic tracking of scenes such as education, conferences and live broadcasts.
● NDI|HX2
NDI|HX2 has the characteristics of low delay and plug and play, which is convenient for project implementation and deployment. It has a good ecology and supports the simultaneous transmission of audio, video and control commands. It is a new generation of network video transmission mode.
● 4K UHD
The new generation of Sony 1 / 2.5-inch high-quality UHD CMOS sensor with a maximum of 8.51 million pixels can realize 4K (3840x2160) ultra-high-resolution high-quality images. And downward compatible with 1080p, 720p and other resolutions.
● 12x optical zoom
It adopts 4K ultra long focal lens with high quality and 8 million ultra-high resolution, 12 times optical zoom, and the maximum field angle is 80.8 °；
●12G-SDI
The maximum support is 2160P60 YUV422 10BIT video output, which is backward compatible with 1080P and 720P video formats. With 12G-SDI, one cable can solve the problem of 4K long-distance transmission;
● HDMI2. 0
Support hdmi2 0 interface, which can directly output 4kp60 uncompressed digital video.
● Low illumination
The new CMOS image sensor with ultra-high signal noise ratio can effectively reduce the image noise under low illumination. The application of 3D noise reduction algorithm can greatly reduce the image noise. Even under ultra-low illumination, the picture remains clean and clear, and the image signal-to-noise ratio is more than 55dB.

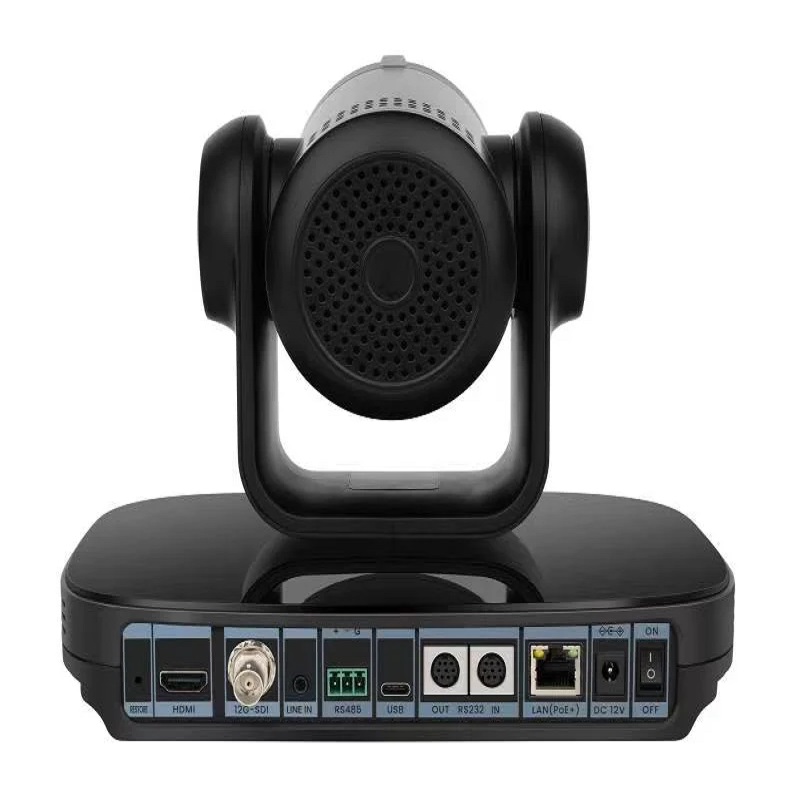

● Rich and perfect interfaces
Support hdmi2 0 HD output, equipped with 12G-sdi interfac . HDMI, 12G-SDI, USB and LAN can simultaneously output 4 high-definition digital signals;
● Remote control
Multiple control modes, RS232, RS485, network and USB can be used to control the camera.
● Gravity sensor
It supports the automatic image flipping function, which is convenient for engineering installation and use.
| Video System | 4K@60fps,4K@59.94fps, 4K@50fps,4K@30fps, 4K@25fps, 4K@29.97fps, 1080P@60fps, 1080P@50fps, 1080I@60fps,1080I@50fp, 1080P@30fps,1080P@25FPS.1080P@59.94fps,1080I@59.94fps, 1080P@29.97fps, 720P@60fps,720P@59.94fps.720P@50fps |
| Sensor | 1 / 1.8-inch UHD CMOS sensor with a maximum of 8.51 million pixels |
| Scanning Mode | Progressive scanning |
| Lens | 12x, f = 3.47mm ~41.65mm, F 1.84 ~ F 3.72 |
| Digital Zoom | 16x |
| Minimal Illumination | 0.5Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, indoor, outdoor, one touch, manual |
| Backlight Compensation | Supported |
| Digital Noise Reduction | 3D digital noise reduction |
| Video S/N | ≥55dB |
| Horizontal Angle of View | 80.8° ~ 7.5° |
| Horizontal Angle of View | 49.9° ~ 4.3° |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -30° ~ +90° |
| Pan Speed Range | 1.8°~80°/S |
| Tilt Speed Range | 1.5°~49°/S |
| H & V Flip | Support |
| Image Freeze | Support |
| PoE | Support |
| Number of Preset | 255 |
| Preset Accuracy | 0.1° |
| USB Featured | USB2.0 |
| Operate System | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
| Color System / Compression | YUY2 / H.264 / MJPEG /H.265 |
| Video Format |
H.264 AVC: max 2160P@30fps MJPEG: max 2160P@30fps |
| Audio on USB | Supported |
| USB Video Communication Protocol | UVC 1.1~1.5 |
| UVC PTZ | Support |
| Network Features | |
| Video Compression | H.264/MJPEG |
| Video Stream | First streaming, second streaming |
| Main Stream Resolution | 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480,720x408,640x480,640x360 |
| Sub Stream Resolution | 720x480, 720x408, 640x480,640x360,480x320,320x240 |
| Video Bit Rate | 32kbps~51200kbps |
| Bit Rate Type | Variable bit rate，Fixed bit rate |
| Frame Rate | 50Hz: 1fps~50fps, 60Hz:1fps~60fps |
| Audio Compression | AAC、G711 |
| Audio Bit Rate | 96Kbps,128Kbps |
| Support protocols | NDI®|HX2, SRT, TCP/IP,HTTP,RTSP,RTMP(s),Onvif,DHCP,Multicast and so on |
| Input/Output Interface | |
| HD Output |
1xHDMI: 2.0 Video format：4K@25/30/50/60/59.94/29.97fps; 1080P@25/30/50/60/59.94/29.97fps; 1080I@50/60/59.94/29.97fps； 720P@50/60/59.94fps Remarks：4KP60 HDMI output only supports YUV422 |
|
1x 12G-SDI: BNC type, 800mVp-p, 75Ω, Comply with SMPTE 2082 standard. Video format：4KP@60/50/30/25/59.94/29.97;1080P@25/30/50/60/59.94/29.97fps; 1080I@50/60/59.94fps; 720P@50/60/59.94fps |
|
| Network Interface | 1xRJ45: 10M/100M/1000M Adaptive Ethernet |
| Audio Interface | 1-ch , 3.5mm Audio Interface, Line In； |
| USB | 1-ch，USB2.0, Type-C |
| Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P |
| 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only | |
| 1xRS485: 3pin phoenix port, maximum distance: 1200 meters, VISCA/Pelco-D/Pelco-P protocol | |
| RESTORE | Support |
| Power Jack | JEITA type (DC IN 12V) |
| Generic Specification | |
| Installation | Ceiling mount, wall mount |
| Display screen | Support |
| Tally light | 1PCS (Red and Green) |
| Power indicator light | 1PCS(Blue） |
| Status indicator light | 1PCS (Green) |
| IR remote | Support |
| Input Voltage | DC 12V / POE |
| Input Current | 2A（MAX） |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -40°C ~ 60°C |
| Power Consumption | MAX 18W |
| Size | 223mm*154.8mm*165mm |
| Net Weight | 1.8KG |
