Features:

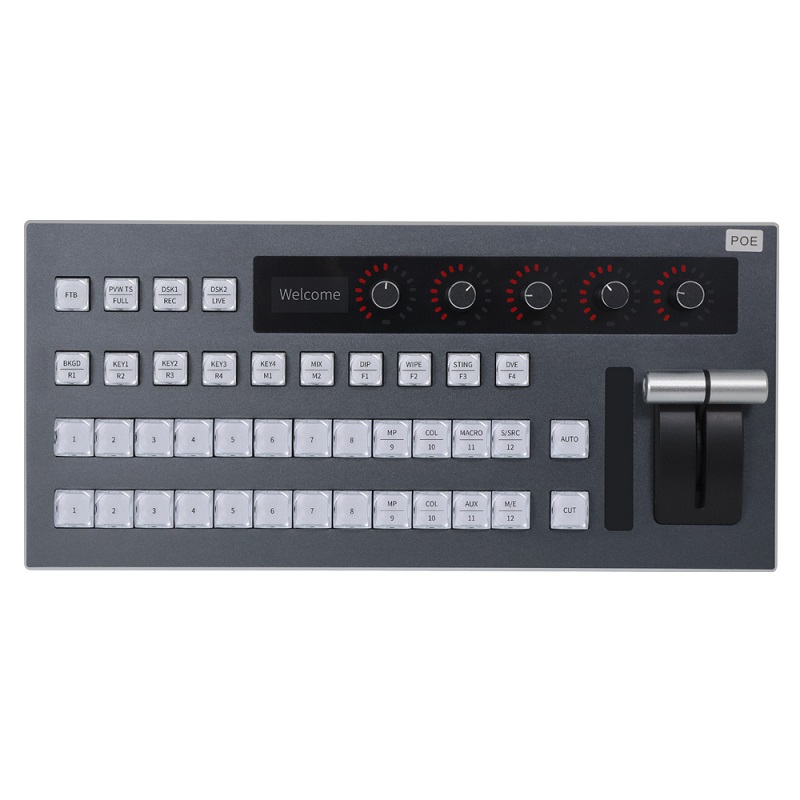

1. This vMix switch panel is compatible with vMix software via USB and LAN connection
2. It is a 12-channel live video switcher, with 24 physical buttons integrated into the panel, that supports a 12-channel PGM+12-channel PVW switch
3. Audio control, it can control up to 5 channels of audio volume control through the 5 knobs integrated with the body
4. Multiple shortcut functions, support the quick operation of common functions of vMix
5. Easy to connect, vMix software only needs a USB 2.0 cable to achieve power supply and data transmission
6. Fashionable appearance, anodized aluminum alloy panel, can be adapted to various environments

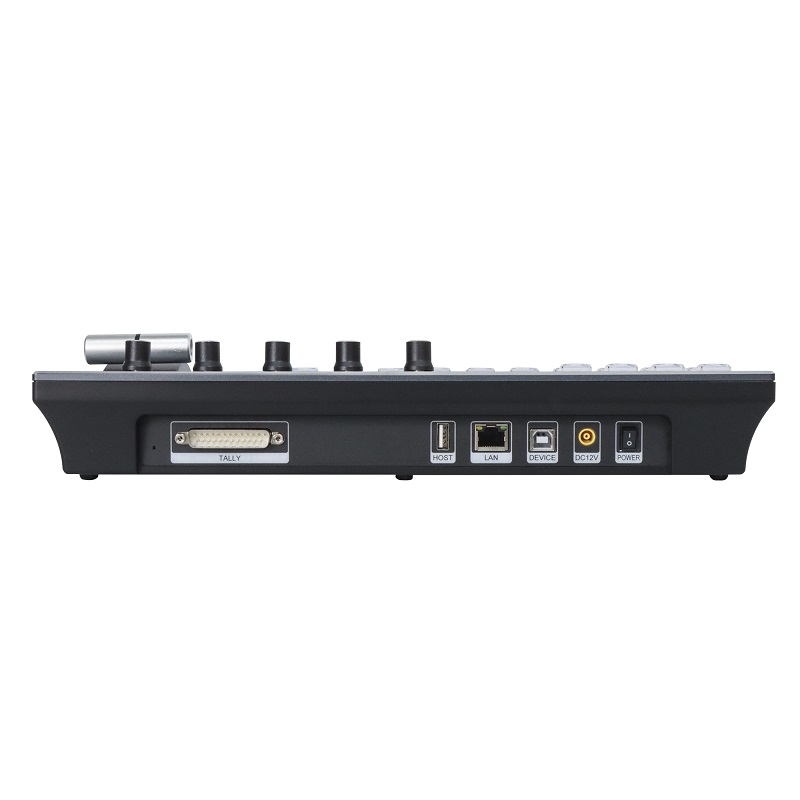

7. The Tally function, supports 12 channel PGMplus 12 channel PVW, a total of 24 Tally signals are output through the DB25 interface.
Specification:
|
Compatible device
|
Video Mixer Switcher
|
|
Connection method
|
USB(Support power supply, LAN(POE optional)
|
|
channel
|
12 channels
|
|
volume control
|
1 input + 4 output
|
|
Transition control
|
Automatic transition, hard cut, T-Bar
|
|
Transition effects
|
Support
|
|
Status light
|
Support
|
|
Display screen
|
Support
|
|
Tally
|
12-channel PGM+12-channel PVW
|
|
Input voltage
|
DC 12V
|
|
Input Current
|
0.3A
|
|
Rated power
|
4W
|
|
POE
|
802.3AF optional
|
|
Use environment
|
Indoor
|
|
Operating temperature
|
0℃~40℃
|
|
Storage temperature
|
-10℃~50℃
|
|
Dimensions
|
420*257.52*121.2mm
|
